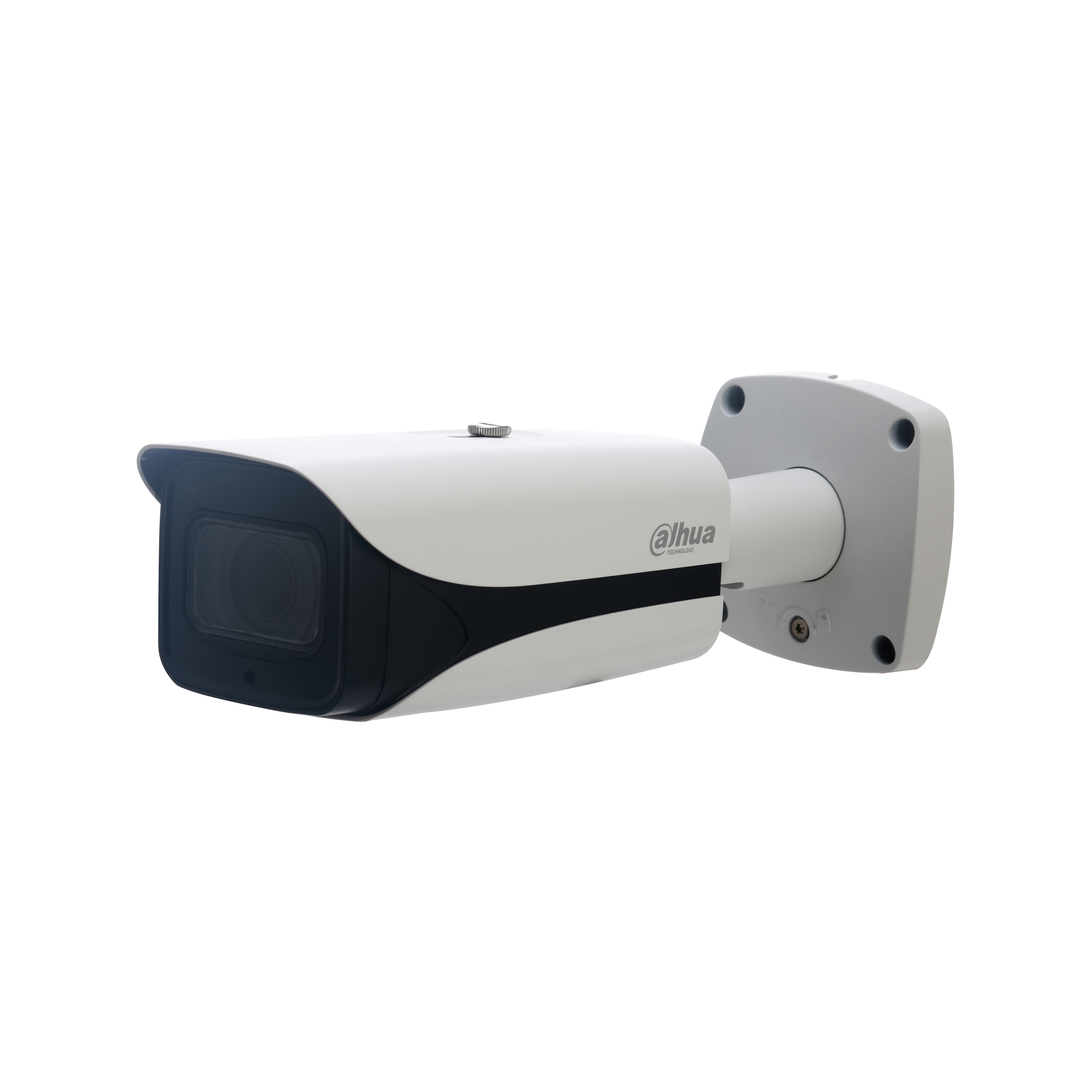

Видеокамера IP Уличная цилиндрическая 4 Mп, WDR

0 отзывов Написать отзыв
30 190 ₽
  • Производитель: Dahua
  • Код товара: DH-IPC-HFW5431EP-ZE
  • Доступность: На складе
• 1/3” 4 Мегапикселя CMOS
• Поддержка H.265/H.264 до 2-х потоков
• 25 к/с при разрешении 4Мп (2688×1520)
• Видеоаналитика
• WDR(120dB), режим день/ночь(ICR), 3DNR, AWB, AGC, BLC
• Сетевой мониторинг: Web viewer, CMS(DSS/PSS), DMSS
• Моторизированный объектив 2.7мм ~ 13.5мм
• Интерфейсы: тревожные входы/выходы 2/1, аудио входы/выходы 1/1
• Дальность ИК подсветки до 50м
• Слот Micro SD, PoE, IP67, IK10


Audio
Compression G.711a / G.711Mu / AAC / G.726
Camera
Effective Pixels 2688(H) x 1520(V)
Electronic Shutter Speed Auto / Manual, 1/3~1/100000s
Image Sensor 1/3” 4Megapixel progressive scan CMOS
IR Distance Distance up to 50m (164ft)
IR LEDs 4
IR On/Off Control Auto / Manual
Minimum Illumination 0.03Lux/F1.4 (Color,1/3s,30IRE) / 0.3Lux/F1.4 (Color,1/30s,30IRE) / 0Lux/F1.4(IR on)
RAM/ROM 512MB/32MB
S/N Ratio More than 50dB
Scanning System Progressive
Certifications
Certifications CE (EN 60950:2000) / UL:UL60950-1 / FCC: FCC Part 15 Subpart B
Construction
Casing Metal
Dimensions 273.2mm×95.0mm×95.0mm (10.76”×3.74”×3.74”)
Gross Weight 1.51Kg (3.33lb)
Net Weight 1.11Kg (2.44lb)
Electrical
Power Consumption <12.95W
Power Supply DC12V / PoE (802.3af)(Class 0)
Environmental
Ingress Protection IP67
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Vandal Resistance IK10
Intelligence
Advanced Intelligent Functions Face Detection
IVS Tripwire / Intrusion / Object Abandoned/Missing
Interface
Alarm 2 channel In: 5mA 5VDC / 1 channel Out: 300mA 12VDC
Audio Interface 1/1 channel In/Out
RS485 N/A
Video Interface 1 Port(For adjustment only)
Lens
Angle of View H: 106°~31° / V:58°~17°
Close Focus Distance 0.3m
DORI Distance Detect - 64m (lens W) / Observe - 26m (lens W) / Recognize - 13m (lens W) / Identify - 6.5m (lens W) / Detect - 208m (lens T) / Observe - 83m (lens T) / Recognize - 41m (lens T) / Identify - 20m (lens T)
Focal Length 2.7mm~13.5mm
Focus Control Motorized
Lens Type Motorized / Auto Iris(DC)
Max. Aperture F1.4
Mount Type Board-in
Optical Zoom 5x
Network
Edge Storage NAS / Local PC for instant recording / Mirco SD card 128GB
Ethernet RJ-45 (10/100Base-T)
Interoperability ONVIF / PSIA / CGI
Management Software Smart PSS / DSS / Easy4ip
Max. User Access 10 Users / 20 Users
Protocol HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4/v6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP
Smart Phone IOS / Android
Streaming Method Unicast / Multicast
Web Viewer IE / Chrome / Firefox / Safari
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Pan:0˚~360˚ / Tilt:0˚~90˚ / Rotation:0˚~360˚
Video
Bit Rate H.264: 24~10240Kbps H.265: 14~9984Kbps
Bit Rate Control CBR / VBR
BLC Mode BLC / HLC / WDR(120dB)
Compression H.265+ / H.265 / H.264+ / H.264
Day/Night Auto(ICR) / Color / B/W
Defog N/A
Digital Zoom 16x
Electronic Image Stabilization (EIS) N/A
Flip 0° / 90° / 180° / 270°
Frame Rate Main Stream: 4M(1~25/30fps) / Sub Stream: D1(1~25/30fps) / Third Stream: 720P(1~25/30fps)
Gain Control Auto / Manual
Mirror Off / On
Motion Detetion Off / On (4 Zone, Rectangle)
Noise Reduction 3D DNR
Privacy Masking Off / On (4 Area, Rectangle)
Region of Interest Off / On (4 Zone)
Resolution 4M(2688×1520) / 3M(2304×1296) / 1080P(1920×1080) / 1.3M(1280x960) / 720P(1280×720) / D1(704×576/704×480) / VGA(640×480) / CIF(352×288/352×240)
Smart IR Support
Streaming Capability 3 Streams
White Balance Auto / Natural / Street Lamp / Outdoor / Manual
